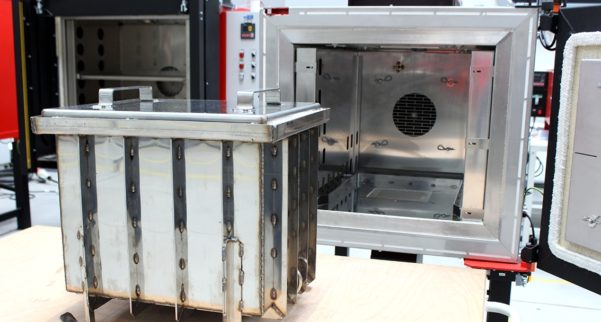

3D teknologian uunit
Lämpökäsittely uunit 3D teknologian tuotteille
LAC tarjoaa erittäin laajan valikoiman erilaisiin käyttökohteisiin uuneja ja kuivaimia. LAC valmistaa standardiuuneja mutta pystyy myös valmistamaan asiakaskohtaisesti räätälöityjä uuneja. Valikoima sisältää uuneja pienistä laboratorio uuneista aina suuriin teollisuusuuneihin ja täydellisiin linjastoihin.
Uttis tarjoaa raskaan sarjan teollisuuden lämpökäsittelyuuneja. Uttis valmistaa standardi uuneja mutta suunnittelee ja valmistaa myös erikoisuuneja tapauskohtaisesti räätälöityinä. Uunit voidaan valita joko sähkö- tai kaasukäyttöisiksi.
LAC:n materiaali lisäävän 3D teknologian lämpökäsittelyuunit
LAC PP-sarjan kammiouunit 3d alumiini tuotteille 200-450 °C
- Kammiouuni 3D tulostettujen komponenttien lämpökäsittelyyn
- Uunilla saavutetaan 3D tulostettujen seosmetallien halutut metallurgiset ominaisuudet
- Käsiteltävät materiaalit: alumiini
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomtita (w×h×d) mm Sisämitta (w×h×d) mm Hyllyt kpl Syöttö kW Paino kg Suojaus Jännite V Lattian maksimi panostus kg
PP 20/45 450 200 – 450 20 800×650×1000 300×200×350 – 3 115 16/3 230 30
PP 40/45 450 200 – 450 35 850×1450×1050 300×300×400 2 6 160 16/3 400 50
PP 70/45 450 200 – 450 70 850×1550×1150 350×400×500 2 8 190 20/3 400 80
PP 140/45 450 200 – 450 135 950×1650×1300 450×500×600 2 12 300 20/3 400 150
PP 270/45 450 200 – 450 270 1200×1750×1450 600×600×750 2 20 580 40/3 400 200
PP 540/45 450 200 – 450 540 1300×1950×1750 750×800×900 2 24 750 50/3 400 250
Vakiovarusteet:
- Ht40AL controller
- Stainless steel muffle
- Stainless steel circulation insert with long service life
- Horizontal internal atmosphere circulation
- Heating elements located outside the furnace space
- 2 stainless steel shelves (except for the PP 20)
- Manually controlled ventilation flap for cooling the furnace’s operational space
- “K” type thermocouple
- Contactless switching relay for noise-free operation
- Limit switch for safe opening of the furnace
- Door manually opened towards the side
- Tabletop (PP 20) or free-standing variant (other types)
Lisävarusteet:
- Ht Industry / Ht205 controller
- Intake of protective atmosphere (manually or automatically controlled gas intake)
- Semi-gastight furnace variant (with a special ventilation chimney)
- Graphic temperature recorder (controller and recorder are located in custom control panel on side of furnace)
- Automatic ventilation flap for cooling the furnace’s operational space
- Optimisation of the temperature field for DIN 17052-1 ΔT10 °C in the internal usable space (in an empty furnace at Tmax)
- Measuring loop calibration
- RS232 or EIA485 interfaces including software and cabling
- Ht-Monit set (LAN+SW interface for PC)
- Custom stand
- Door opening to the left or right (hydraulic sliding, pneumatically controlled)
- Additional shelves
- One-handed opening (for models PP 20 through PP 140 inclusive, this is standard equipment)
- Controlled or uncontrolled forced cooling (cannot be combined with the semi-gastight furnace version)
- Sisäisen jännityksen poisto
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 6 viikkoa
- Alhainen äänitaso
- 24 kuukauden takuu
- Tekninen tuki
- Pakotettu ilman kierto
- Ylivertainen lämmön siirto käsiteltäviin kappaleisiin
- Tasainen lämmön jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
- Teollisesti kestävä ratkaisu
LAC PP-sarjan kammiouunit 3d teknologia 300-850 °C
- Kammiouuni 3D tulostettujen komponenttien lämpökäsittelyyn
- Uunilla saavutetaan 3D tulostettujen seosmetallien halutut metallurgiset ominaisuudet
- Käsiteltävät materiaalit: korkealujuus teräs, ruostumaton teräs, koboltti-kromi
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomita (w×h×d) mm Sisämitat (w×h×d) mm Kaasusäiliön sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Lattian maksimi panostus kg
PP 40/85 850 300 – 800 35 850×1450×1050 300×300×400 220×160×250 7 200 20/3 400 50
PP 70/85 850 300 – 800 70 850×1550×1150 350×400×500 270×260×350 9 250 20/3 400 80
PP 140/85 850 300 – 800 135 1000×1650×1250 450×500×600 320×340×400 14 350 25/3 400 150
PP 270/85 850 300 – 800 270 1200×1750×1650 600×600×750 470×460×550 20 580 40/3 400 200
PP 540/85 850 300 – 800 540 1350×1950×1800 750×800×900 620×610×700 30 850 50/3 400 250
Vakiovarusteet:
- Gas box with protective atmosphere automatic intake
- HT 205 controller
- HT-Monit set (LAN+SW interface for PC)
- Automatically controlled protective atmosphere intake for single type of gas (one flow meter)
- K type control thermocouple + HT 40 B displaying unit
- K type charge thermocouple + HT 40 B displaying unit
- Furnace control switching between the control and charge thermocouples
- Door controlled manually opening towards the right-hand side
- One shelf (for PP/450°C)
- Manually controlled ventilation chimney
- Free-standing variant
- Stainless steel muffle
- Stainless steel circulation insert with long service life
- Limit switch for safe opening of the furnace
Lisävarusteet:
- Software HT-MonitEV
- HT-MonitEV registration software
- Three- or four-colour beacon
- Automatic intake and exhaust flap (recommended)
- Manual intake and exhaust flap
- Controlled/uncontrolled vacuum forced cooling
- Circulation fan adjustable speed
- Door manual opening upwards
- Automatic door opening (pneumatic)
- Door opening towards the left
- Door electric lock
- Switchboard cooling
- Roller track
- Optimisation of the temperature field for DIN 17052-1 ΔT20 °C in the internal usable space (in an empty furnace at Tmax)
- Pulling out hook with length of 750 mm or 1,000 mm
- Protective atmosphere automatic intake for two different quantities of gas (two flow meters) – it is recommended
- Charging trolley
- Cooling table
- Keinotekoinen ikääntyminen
- Sisäisen jännityksen poisto
- Kovetus
- Hehkutus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 6 viikkoa
- Alhainen äänitaso
- 24 kuukauden takuu
- Tekninen tuki
- Pakotettu ilman kierto
- Ylivertainen lämmön siirto käsiteltäviin kappaleisiin
- Tasainen lämmön jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
- Teollisesti kestävä ratkaisu
LAC K-sarjan kammiouunit 3d teknologia 700-1350 °C
- Kammiouuni 3D tulostettujen komponenttien lämpökäsittelyyn
- Uunilla saavutetaan 3D tulostettujen seosmetallien halutut metallurgiset ominaisuudet
- Käsiteltävät materiaalit: ruostumaton teräs, nikkeli seokset, koboltti-kromi seokset
Uuni tyyppi Tmax °C Tmax kaasusäiliön kanssa °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Kaasusäiliön sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Lattian maksimi panostus kg
K 40/13 1300 1100 40 945×1470×1020 350×350×350 170×170×170 9 170 16/3 400 50
K 120/13 1300 1100 120 1080×1480×1120 500×500×500 350×350×350 15 350 25/3 400 80
K 216/13 1300 1100 216 1250×1600×1250 600×600×600 450×400×450 20 400 40/3 400 120
K 500/13 1300 1100 490 1460×1825×1460 650×1000×750 500×750×600 40 770 80/3 400 300
K 715/13 1300 1100 715 1460×1825×1950 650×1000×1100 500×750×950 60 990 100/3 400 400
- Keinotekoinen ikääntyminen
- Sisäisen jännityksen poisto
- Kovetus
- Hehkutus
Vakiovarusteet:
- Gas box with protective atmosphere automatic intake
- HT 205 controller
- HT-Monit set (LAN+SW interface for PC)
- Automatically controlled protective atmosphere intake for single type of gas (one flow meter)
- K type control thermocouple + HT 40 B displaying unit
- K type charge thermocouple + HT 40 B displaying unit
- Furnace control switching between the control and charge thermocouples
- Door controlled manually opening towards the right-hand side
- Manually controlled ventilation chimney
- Free-standing variant
Lisävarusteet:
- HT-MonitEV registration software
- Three- or four-colour beacon
- Automatic intake and exhaust flap (recommended)
- Manual intake and exhaust flap
- Controlled/uncontrolled vacuum forced cooling
- Door automatic opening towards the top (pneumatically)
- Door electric lock
- Door opening towards the left
- Switchboard cooling
- Optimisation of the temperature field for DIN 17052-1 ΔT20 °C in the internal usable space (in an empty furnace at Tmax)
- Pull out hook with length of 750 mm or 1,000 mm
- Protective atmosphere automatic intake for two different quantities of gas (two flow meters) – it is recommended
- Charging trolley
- Cooling table
- Kestävä teräksinen rakenne
- Tuuletus joka estää höyryjen kondensoitumisen polton aikana, vähentää korroosiota
- Lämmitys 5 puolelta, myös pohjasta
- Korkealaatuiset eristysmateriaalit, alhainen energian kulutus, optiona nopea lämmönnosto
- Puolijohdereleet, tasainen ja äänetön käyttö, minimaalinen häiriö ympäröiviin tiloihin
- 36 kuukauden takuu
LAC PKRC-sarjan kaasutiiviit kammiouunit 3d teknologia 300-950 °C
- Kaasutiivis uuni sisäisellä atmosfäärisellä kierrolla 3d teknologialla valmistettujen kappaleiden lämpökäsittelyyn
- Kaasutiivin uunin sisäinen atmosfäärinen kierto varmistaa tasaisen lämmön jakautumisen sekä määritellyn atmosfäärin (argon, typpi, muottikaasu ja jne). Uunilla saavutetaan 3D tulostettujen seosmetallien halutut metallurgiset ominaisuudet.
- Käsiteltävät materiaalit: titaani, nikkeli seokset
Uuni tyyppi Tmax °C Tmax pitkäaikainen käyttö °C
Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Kipin käyttö mitat hyllyn kanssa (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Lattian maksimi panostus kg
PKRC 55/95 950 850 24 1400×1830×1450 267×410 225×135×410 13 600 25/3 400 150
PKRC 180/95 950 850 83 1700×1960×1670 412×620 325×245×620 29 1100 50/3 400 200
PKRC 350/95 950 850 225 1915×2080×2005 544×900 450×290×900 50 1380 80/3 400 300
Vakiovarusteet:
- Ht205 controller
- HT-Monit set (LAN+SW interface for PC)
- Heating spirals on ceramic tubes outside the furnace’s operational space
- Door sealing
- Manually controlled ventilation and suction flaps for cooling space outside of the retort
- Door manually opened towards the side
- Limit unit
- Automatically controlled intake of protective atmosphere for one type of gas (one flow meter)
- Manovacuometer for checking overpressure in the retort
- Vacuum pump for atmosphere exhaustion from the retort in cold conditions
- Adapter for connecting a G ½″ rubber hose to the cooling of the collar thermistor for checking the temperature of the flange and detection ofcoolant presence in the collar of the retort
- Overpressure safety valve for releasing protective gas from the retort with an overpressure of 4–6 mbar
- Ammeters for checking the state of the heating elements (numbers based on number of phases connected to the heating)
- K type control thermocouple + HT 40 B displaying unit
- K type charge thermocouple + HT 40 B displaying unit
- Furnace control switching between the control and charge thermocouples
- Contactless switching relay for noise-free operation
- Limit switch for safe opening of the furnace
- Free-standing variant
Lisävarusteet:
- HT-MonitEV registration software
- Replacement retort made of refractory stainless steel
- Controlled forced cooling (cooling along a selected cooling curve)
- Automatic intake and exhaust flap (recommended)
- Optimisation of the temperature field for DIN 17052-1 ΔT20 °C in the internal usable space (in an empty furnace at Tmax)
- Second gas automatic supply
- Three-colour beacon
- Four-colour beacon with siren
- Sisäisen jännityksen poisto
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- Tasainen lämmön jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
- Teollisesti kestävä ratkaisu
LAC:n 3D teknologian uunien ohjausyksiköt ja mittalaitteet
Basic Parameters:
- 1 programme: 2x run-up, 2x dwell
- 1 measuring input
- 0 digital inputs
- 3 outputs (regulation, auxiliary, alarm)
- 1 communication line
- monitoring using the HtMonit programme
Other features:
- delayed programme launch
- programme operation indicator on front panel
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- using the HtMonit programme
Ht205 ohjausyksikkö
- Ohjelmoitava PID ohjausyksikkö, 2 position / 3 position ohjaus teollisiin käyttökohteisiin
- Vakiona PP 3D, K, PKRC uunit
- Optiona PP alu uunit
Basic Parameters:
- 30 programmes, each with 15 steps
- 1 measuring input
- 2 digital inputs
- 7 outputs (regulation, alarm, auxiliary)
- LAN interface
- 2 communication lines
- data logger for measured values, 500 records
- data logger for reports on device activity, 200 records
- data logger for environmental temperatures, 500 records
- monitoring using the HtMonit programme
Other features:
- change to the programme during its operation
- programme operation indicator on front panel
- Master/Slave system, cascading regulation
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- by real-time hour
- via digital input
- via communication linea
Edustamiamme päämiehiä
ABP Induction
Induktioteknologia
Allied Minerals
Tulenkestävät massat
Forns Hobersal
Lämpökäsittelyuunit
Intermetall Produkte
Tulenkestävät valut
Jasper
Teollisuusuunit
Lac
Mesa Electronic
Mittalaitteet
PhoenixTM
Mittalaitteet
Seco Warwick
Uttis
Erikoisuunit
Tarvitsetko apua tuotteiden tai teknisten ratkaisujen kanssa?
Ota yhteyttä, tunnemme lämpökäsittely prosessit, laitteet ja materiaalit!
Myynti ja tekninen tuki
Janne Huhta
Vaihde: 09-615 20 550
Matkapuhelin: 050-305 5972
Sähköposti: janne.huhta(at)beijers.fi
Beijer Oy
Vaihde: 09-615 20 550
Sähköposti: info(at)beijers.fi
Lataukset
- Sulatus- ja Lämpökäsittely – yleisesite
- LAC teollisuusuunit ja kuivaimet
- Uttis teollisuusuunit ja kuivaimet
- ABP Induction induktiokuumennus
- LAC laboratoriouunit ja kuivaimet
- LAC keramiikkauunit ja lasiuunit
- LAC 3D tulostuksen jälkikäsittelyn teollisuusuunit
- PhoenixTM prosessin lämpötilanmittaus
- Diamant Dichtol kapillaari tiivistysaineet
