Laboratorio Uunit ja kuivaimet
Laboratorio lämpökäsittely uunit ja kuivaimet
LAC tarjoaa erittäin laajan valikoiman erilaisiin käyttökohteisiin uuneja ja kuivaimia. LAC valmistaa standardiuuneja mutta pystyy myös valmistamaan asiakaskohtaisesti räätälöityjä uuneja. Valikoima sisältää uuneja pienistä laboratoriouuneista aina suuriin teollisuusuuneihin ja täydellisiin linjastoihin.
Uttis tarjoaa raskaan sarjan teollisuuden lämpökäsittelyuuneja. Uttis valmistaa standardi uuneja mutta suunnittelee ja valmistaa myös erikoisuuneja tapauskohtaisesti räätälöityinä. Uunit voidaan valita joko sähkö- tai kaasukäyttöisiksi.

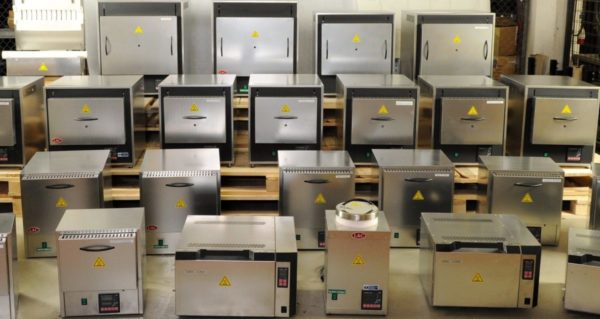

LAC:n laboratorio lämpökäsittelyuunit ja kuivaimet
LAC S-sarjan laboratorio kammiokuivain 100 - 300 °C
- Suunniteltu max 300 °C käyttölämpötilaan
- S-sarjan kuivaimet on suunniteltu pääosin kuivaukseen, vulkanointiin, esilämmitykseen ja eri materiaalien kovettamiseen. Kuivaimien rst-muhvit takaavat pitkän käyttöiän sillä ne ovat kemiallisesti ja mekaanisesti kestäviä. Sisäinen vaakasuora ilmankierto varmistaa tasaisen lämmön jakautumisen.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Hyllyt kpl Paino kg Puhaltimet kpl Syöttö kW Suojaus Jännite V Pohjan max panostus kg
S 60/02 200 100 – 200 60 1050×1350×950 450×300×450 1 60 1 2 16/1 230 40
S 100/02 200 100 – 200 100 1050×1550×1000 450×500×450 1 180 2 3 16/1 230 50
S 250/02 200 100 – 200 240 1400×1550×1200 800×500×600 1 250 1 4 16/3 400 70
S 400/02 200 100 – 200 380 1400×1750×1200 800×800×600 1 350 1 4 16/3 400 70
S 60/03 300 100 – 300 60 1050×1350×950 450×300×450 1 60 1 3 16/1 230 40
S 100/03 300 100 – 300 100 1050×1550×1000 450×500×450 1 180 2 3 16/1 230 50
S 250/03 300 100 – 300 240 1400×1550×1200 800×500×600 1 250 1 4 16/3 400 70
S 400/03 300 100 – 300 380 1400×1850×1200 800×800×600 1 350 1 6 16/3 400 70
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- resistance heating (heating elements)
- insulation using a mineral-fibre mat
- thermostat (use as a limit unit)
- manually controlled ventilation flap for cooling the furnace’s operational space
- manually controlled suction flap
- stainless steel muffle
- stainless steel circulation insert with long service life
- horizontal internal atmosphere circulation
- door manually opened towards the side
- “K” type thermocouple
- contactless switching relay for noise-free operation
- door limit switch for safe opening of the furnace
- stand
- shelf
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- graphic temperature recorder
- automatic ventilation flap for cooling the furnace’s operational space
- exhaust fan for forced drawing off of flue gases
- travel wheels
- transport door opening
- optimisation of the temperature field for DIN 17052-1 ΔT10 °C in the internal usable space (in an empty furnace at Tmax)
- measuring loop calibration
- other shelves
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- door opening towards the top (electro-hydraulically)
- door opening towards the top (pneumatically – pantograph)
- door opening towards the top (manually – pantograph)
- relative humidity measurement
- METREX gas analyser
- forced cooling
- door inspection window
- interior furnace lighting
- one-handed door closing
Muutokset kumiteollisuudelle:
- exhaust fan in furnace ceiling with automatic flap and insulated fan and suction.
- the distance between the furnace and the fan must be minimised.
- air volume extracted based on the furnace volume (e.g. 700 m3/hour drawn off for the SV 3300/250). The furnace must function in underpressure.
- fan exhaust with tilt away from fan for draining condensate
- opening at the lowest point in the exhaust for drawing off condensate (to be executed by customer)
- automatic suction flap on the fan unit
- Kuivaus
- Vulkanisointi
- Kovetus
- Matalan lämpötilan lämpökäsittely
- Poltto ja hehkutushäviö
- Esilämmitys
- Metallien lämpökäsittely
- Materiaalien testaus (PS)
- Hehkutus
- Lämmitys
- Muottien ja keernojen kuivaus
- Muottien ja puolivalmisteiden esilämmitys
- Valujen esilämmitys
- Esilämmitys ennen taontaa
- Karkaisu
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 6 viikkoa
- 24 kuukauden takuu
- Alhainen lämpötila
- Tasainen lämmön jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
- Helppo lämmitystehon nosto
- Huoltoystävällinen
LAC L-sarjan laboratorio kammiouunit 700 -1150 °C
- Yleiskäyttöinen laboratoorion perusuunit joka selviää haastavistakin käyttötarkoituksista
- Uunin vuorausten sisään asennetut lämmitys spiraalit suojaavat uunia mekaanisilta ja kemiallisilta vaurioilta. L-sarjan uuneissa ilmausventtiili savukaasujen poistoa varten. Uunit eivät silti sovellu pyrolyysiin. Korkealaatuinen rakenne ja käytetyt materiaalit varmistavat että uunit soveltuvat haastaviinkiin käyttötarkoituksiin.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
L 03/12 1200 700 – 1150 3 380×440×400 180×100×140 1.2 20 16/1 230 4
L 05/12 1200 700 – 1150 5 430×470×430 230×130×170 2.4 26 16/1 230 6
L 09/12 1200 700 – 1150 9 430×505×500 230×170×240 3 30 16/1 230 6
L 15/12 1200 700 – 1150 15 450×505×600 250×170×340 3.5 40 16/1 230 6
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- heating elements in ceramic panels
- insulation using mineral-fibre plates
- ventilation chimney for venting the furnace’s operational space
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- door manually opened downwards
- power cable fitted with one-phase plug
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor (only with HtIndustry/Ht205/Ht200 controller)
- protective plate for bottom
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika jopa vain pari päivää
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- Nopean lämpötilan nosto maksimiin
- Tasainen lämpötilan jakautuminen
- Monikäyttöinen
LAC LE-sarjan laboratorio kammiouunit 700 - 1050 °C
- Taloudellisempi versio L-sarjan uuneista lyhyt aikaiseen käyttöön
- Vaikka LE-sarjan uunien rakenne ei ole yhtä vahva kuin L-sarjan uuneilla, ne tarjoavat kuitenkin erittäin hyvän hinta-laatu suhteen. LE-sarjan uunit on tarkoitettu kokeita ja testausta varten. Uunit eivät ole tarkoitettu 24/7 käyttöön ja jos tämä on tarpeen niin tutustukaa L-sarjan uuneihimme.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax° C Suositeltu käyttölämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LE 05/11 1100 700 – 1050 5 470×330×455 170×130×230 1.8 20 16/1 230 6
LE 09/11 1100 700 – 1050 9.4 490×370×515 190×170×290 2.3 24 16/1 230 6
LE 15/11 1100 700 – 1050 14.4 550×370×565 250×170×340 3 28 16/1 230 6
Vakiovarusteet:
- Ht60B controller (regulates to a constant value)
- heating elements in quartz tubes
- ventilation chimney for venting the furnace’s operational space
- slide valve for controlling air intake
- “K” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- door manually opened downwards
- power cable fitted with one-phase plug
- tabletop variant
Lisävarusteet:
- Ht40P controller (10 programmes with 15 steps each)
- injector with exhaust fan and pull interruptor for drawing off combustion products (only with Ht40P controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika jopa vain pari päivää
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- Nopean lämpötilan nosto maksimiin
- Säädettävä tuloilman syöttö
- Edullinen hinta

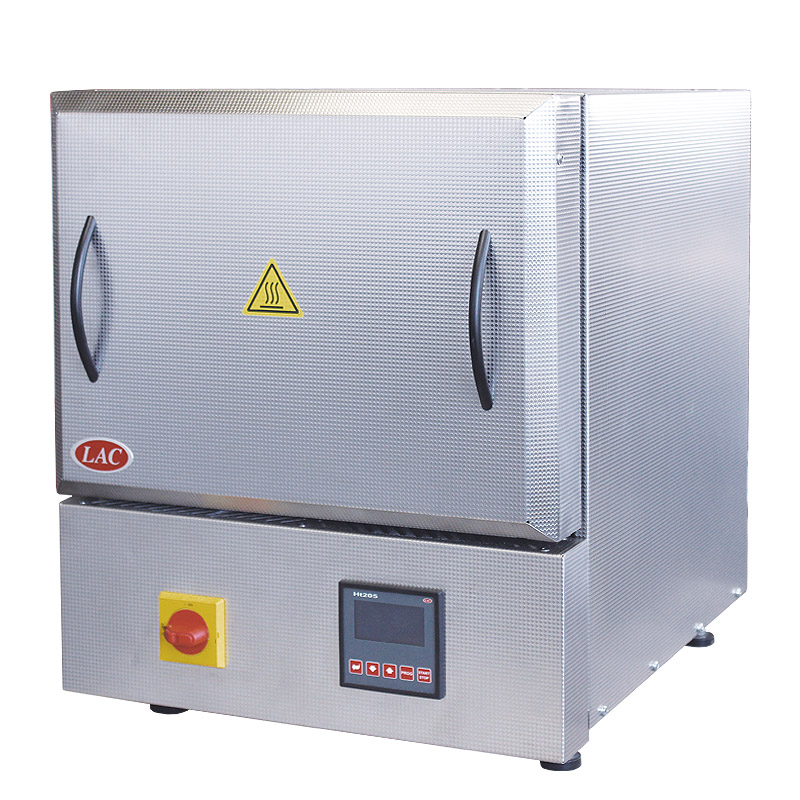

LAC LH-sarjan laboratorio uunit 700 - 1300 °C
- Yleiskäyttöinen uunit korkeisiin lämpötiloihin ja nopeaan panostusten lämmitykseen
- LH-sarjan uunit ovat monikäyttöisiä labrauuneja. Uuni on tarkoitettu materiaalien testaukseen korkeissa lämpötiloissa. Vuorauksen rakoihin on asennettu lämmityselementit joka siirtävät nopeasti lämmön kappaleisiin. Erittäin aggressiivisiin panostuksiin uuni ei sovellu, koska savukaasut ovat kosketuksissa lämmitys spiraalien ja vuorauksen kanssa.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LH 06/13 1340 700 – 1300 6 610×590×715 200×150×230 1.5 72 16/1 230 10
LH 09/13 1340 700 – 1300 9 600×590×715 230×170×230 2 73 16/1 230 10
LH 15/13 1340 700 – 1300 15 620×670×715 250×250×250 2.4 82 16/1 230 15
LH 30/13 1340 700 – 1300 30 680×770×800 310×310×310 3.2 105 16/1 230 25
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- door manually opened upwards
- heating spirals in grooves in lining
- chamber lining made from lightweight bricks
- ventilation chimney for venting the furnace’s operational space
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- power cable fitted with one-phase plug
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor for drawing off flue gases (only with HtIndustry/Ht205/Ht200 controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika jopa vain pari päivää
- Äänetön käyttö
- 36 kuukauden takuu
- Tekninen tuki
- Normaalia korkeampi lämpötila
- Nopea lämmön siirto panostukseen
- Monikäyttöinen
LAC LMH muhveli laboratoriouunit 700 -1150 °C
- Suunniteltu agressiivisten panostusten testaukseen
- Lämmitys spiraalit ovat sijoitettu uunin ulkopuolelle ja suojattu keraamisella suojauksella jotta agressiiviset savukaasut eivät vahingoita niitä. Uuni on myös suojattu savukaasujen poistolla joka estää höyryjen kondensoitumisen käytön aikana.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LMH 04/12 1200 700 – 1150 4 490×540×720 170×90×275 3 42 16/1 230 10
LMH 07/12 1200 700 – 1150 7 490×540×720 170×170×275 3 48 16/1 230 10
LMH 11/12 1200 700 – 1150 11 570×540×720 255×165×255 3.5 53 16/1 230 15
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- heating spiral coiled on muffle, outside the furnace space
- muffle insulated with mineral-fibre mat covered with insulation plates
- ventilation chimney for venting the furnace’s operational space
- protective glass in door slit
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the door
- door manually opened upwards
- power cable fitted with one-phase plug
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor (only with HtIndustry/Ht205/Ht200 controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika jopa vain pari päivää
- Äänetön käyttö
- 36 kuukauden takuu
- Tekninen tuki
- Nopean lämpötilan nosto maksimiin
- Tasainen lämpötilan jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
LAC LMV-sarjan vertikaaliset muhveliuunit 700 -1150 °C
- Ylhäältä ladattava uuni agressivisten panosten testaukseen
- Uuni on suunniteltu kappaleiden laskuun ja panostukseen ylhäältä käsin. Lämmitys spiraalit ovat sijoitettu uunin ulkopuolelle ja suojattu keraamisella suojauksella jotta agressiiviset savukaasut eivät vahingoita niitä. Uuni on myös suojattu savukaasujen poistolla joka estää höyryjen kondensoitumisen käytön aikana.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Ulkomitat (Ø × d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LMV 2/12 1200 700 – 1150 2 300×470×300 110×160 1.8 30 16/1 230 5
LMV 5/12 1200 700 – 1150 5 350×550×350 170×230 2.6 40 16/1 230 5
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- heating spiral coiled on muffle, outside the furnace space
- muffle insulated using a mineral-fibre mat
- lid of loading aperture lined with mineral-fibre insulation
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the door
- all electrical elements are located in the space under the muffle
- power cable fitted with one-phase plug
- removable lid fitted with a handle
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika vain 5 viikkoa
- Äänetön käyttö
- 36 kuukauden takuu
- Tekninen tuki
- Tasainen lämpötilan jakautuminen
- Mekaanisesti ja kemiallisesti kestävä
LAC LG-sarjan gravimetriset uunit 700 - 1150 °C
- Kammiouuni jolla mitataan panostusten massahäviötä
- LG-sarjan gravimetriseen uuniin on yhdistetty kammiouuni, tarkka vaaka ja ohjelmisto jolla säädetään ja seurataan massan häviöitä. Mittaus tapahtuu thermogravitaatio käyrällä joka dokumentoi näytteen massahäviön. suhteesssa lämpötilaan ja aikaan. Uunilla voidaan testata erityyppisiä biomassoja sekä myös jätteitä kuten RDF, muovi ja paperi.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite
LG 09/12 1200 700 – 1150 9.4 490×720×515 190×170×290 2.8 34 16/1 230
Vakiovarusteet:
- Ht40P controller (10 programmes with 15 steps each)
- digital scale with a precision of 0.01 g
- maximum measurable weights 2/5/10 kg
- door manually opened downwards
- heating elements in ceramic panels
- insulation using mineral-fibre plates
- ventilation chimney for venting the furnace’s operational space
- slide valve in door for controlling air intake
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor for drawing off flue gases (only with HtIndustry/Ht205/Ht200 controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika vain 3 viikkoa
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- Helppo mittaustulostus luku
- Massahäviön mittaus
- Mittaustarkkuus 0.01 g
LAC LHS-sarjan uunit piikarbidi lämmitystangoilla 700 - 1500 °C
- Uuni keskikorkeille lämpötiloille, välimalli VP ja LH sarjan uuneista
- Piikarbidi pohjaiset lämmitystangot ovat edullinen tapa saavuttaa korkeat työlämpötilat. Toisin kuin VP-sarjan MoSi2 lämmityselementit, SiC pohjaiset eivät vaadi jatkuvaa huoltoa sekä niillä on pidempi käyttöikä ja parempi lämpöshokkien kesto. Uunilla on myös todella nopea lämmitysaika, se voi saavuttaa 1400 °C lämptilan 40 minuutissa. VP-sarjan uuneihin verratuna LHS-sarjan uunit ovat kevyempiä ja kompaktimpia rakenteensa ansiosta.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LHS 03/14 1400 700 – 1400 3 440×565×600 120×120×210 4.5 50 16/3 400 2
LHS 08/14 1400 700 – 1400 8.4 490×615×680 170×170×290 8 60 16/3 400 5
LHS 15/14 1400 700 – 1400 14.4 550×670×710 220×220×310 10.5 100 16/3 400 8
LHS 03/15 1500 700 – 1500 3 440×565×600 120×120×210 4.5 50 16/3 400 2
LHS 08/15 1500 700 – 1500 8.4 490×615×680 170×170×290 8 60 16/3 400 5
LHS 15/15 1500 700 – 1500 14.4 550×670×710 220×220×310 10.5 100 16/3 400 8
Vakiovarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- SiC-based rods on the furnace’s sides
- insulation using ceramic-fibre plates
- forced cooling of the jacket using fans
- “B” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- door manually opened upwards
- tabletop variant
Lisävarusteet:
- intake of protective atmosphere (manually or automatically controlled gas intake)
- injector with exhaust fan and pull interruptor for drawing off flue gases
- protective plate for bottom
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Emalin poltto
- Sintraus
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika vain 5 viikkoa
- Äänetön käyttö
- 24 kuukauden takuu
- Keskikorkeille lämpötiloille
- Piikarbidi pohjaiset tangot kestävät lämpöshokkeja
- Alhaisempi hankintahinta kuin VP-sarjan uuneilla
LAC LSP-sarjan laboratorio nousu-uunit 600 - 1250 °C
- Testaa nopeasti – jopa 5 eri lämpötila aluetta samalla kertaa
- Tämän tyyppisiltä uuneilta odottaisi niiden olevan isoja ja massiivisia. Jos sinun pitää testata erilaisia näytteitä eri lämpötiloissa usean kerran päivässä, on LSP-sarjan uuni oikea siihen. Tämän uunin ansiosta ette tarvitse useita eri uuneja tai jatkuvasta säätää uuneja eri konfiguraatioille.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V
LSP 30/13 1300 600 – 1250 30 1700x1200x500 1400×140 7 240 20/3 400
Vakiovarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- heating spirals in grooves in the lining on the sides of the furnace along its whole length
- lid insulated using a mineral-fibre mat
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- manual furnace lid lifting
- free-standing variant
Lisävarusteet:
- Ht100 multi-channel meter (able to record temperatures in up to 10 places)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)
- Emalin poltto
- Sintraus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 12 viikkoa
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- Lämpötilan tasaisuus
- 5 lämpötilaa
- Nopea testaus
LAC LT-sarjan putkiuunit 600 - 1250 °C
- Ideaali uuni pienten panosten tutkimiseen ja testaukseen
- Keraamisten putkien lämpötilan tasaisuuden ansiosta uuni soveltuu testeihin ja lämpökäsittely prosessien testauksiin pienissä sarjoissa. Panostuksen paikkaa voidaan myös siirtää kesken prosessin ilman suurempaa lämpöhäviötä.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Putken sisä Ø mm Ulkomitat (w×h×d) mm Lämmitysaluuen pituus mm Putken pituus mm Syöttö kW Paino kg Suojaus Jännite V
LT 50/300/13 1300 600 – 1250 50 520×310×510 300 660 3.2 75 16/1 230
LT 50/500/13 1300 600 – 1250 50 805×310×510 500 900 5 85 16/3 400
LT 50/750/13 1300 600 – 1250 50 1125×310×510 750 1220 8 95 25/3 400
LT 75/500/13 1300 600 – 1250 75 805×310×510 500 900 6.5 85 20/3 400
LT 75/750/13 1300 600 – 1250 75 1125×310×510 750 1220 10 95 32/3 400
LT 100/500/13 1300 600 – 1250 100 810×450×650 500 990 7 85 25/3 400
LT 100/750/13 1300 600 – 1250 100 1125×310×543 750 1220 11.5 95 32/3 400
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- ceramic tube
- heating spirals in insulation grooves outside the furnace’s operational space
- insulation using mineral-fibre plates
- frameless furnace construction, jacket made of bent stainless steel sheet
- electrical installation located within separate switchboard
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- upper part of furnace is tilted upwards using a handle
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor for drawing off combustion products (only with HtIndustry/Ht205/Ht200)
- stand for vertical furnace placement
- intake of protective atmosphere (manually or automatically controlled gas intake), with screw-on tube end
- tube stuffers made from mineral fibre
- metal plugs for gastight variant
- Three-zone heating system for models with tube length of 750 mm
- calibration of the controller’s measuring input
- RS232 or EIA485 interface
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Pyrolyysi
- Metallien lämpökäsittely
- Metallien sulatus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 8 viikkoa
- Äänetön käyttö
- 36 kuukauden takuu
- Tekninen tuki
- Pienille sarjoille
- Kemiallisesti ja mekaanisesti kestävä
- Kaasutiivis versio saatavilla
LAC LZ-sarjan polttouunit 700 - 1050 °C
- Suunniteltu polttoon laboratorio ympäristössä
- LZ-sarjan uunit soveltuvat panostuksen oksidointiin sekä tuhkan määrän arviointiin testauksessa. Uuni soveltuu ,yös moniin muihin käyttötarkoituksiin jossa vaaditaan puhtaan ilman syöttöä ja kaasujen poistoa uunin atmosfääristä.
- Nopeat toimitukset tehtaan kampanjahinnoilla!
Uuni tyyppi Tmax °C Suositeltu käyttö lämpötila °C Tilavuus l Ulkomitat (w×h×d) mm Sisämitat (w×h×d) mm Syöttö kW Paino kg Suojaus Jännite V Pohjan max panostus kg
LZ 03/12 1100 700 – 1050 3 380×940×400 180×100×140 1.2 20 16/1 230 4
LZ 05/12 1100 700 – 1050 5 430×970×430 230×130×170 2.4 26 16/1 230 6
LZ 09/12 1100 700 – 1050 9 430×1005×500 230×170×240 3 30 16/1 230 6
LZ 15/12 1100 700 – 1050 15 450×1005×600 250×170×340 3.5 40 16/1 230 6
Vakiovarusteet:
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- bleeder for drawing off flue gases
- exhaust channels for taking in fresh air and increasing the speed of air exchange
- heating elements in ceramic panels
- insulation using mineral-fibre plates
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- door manually opened downwards
- tabletop variant
Lisävarusteet:
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- protective plate for bottom
- calibration of the controller’s measuring input
- RS232 or EIA485 interface
- HtMonit set (software + interface)
- Poltto ja hehkutus häviö
- Emalin poltto
- Sintraus
- Metallien lämpökäsittely
- Metallien sulatus
- Lasin kovetus
- Materiaalien testaus
- Helppo asentaa ja käyttää
- Asiakaskohtaiset säädöt
- Toimitusaika 3 viikkoa
- Äänetön käyttö
- 24 kuukauden takuu
- Tekninen tuki
- 6 – 12 kertaa vaihtuu kammion tilavuus 60s aikana
- Ilma esilämmitys
- Poistoilmaputkisto
LAC:n laboratoriouunien ja kuivainten ohjausyksiköt ja mittalaitteet
Ht40AL
- Ohjelmoitava PID ohjausyksikkö 2 rampilla
- Vakiona S, L, LH, LMH, LMV, LT, LZ uunit
Basic Parameters:
- 1 programme: 2x run-up, 2x dwell
- 1 measuring input
- 0 digital inputs
- 3 outputs (regulation, auxiliary, alarm)
- 1 communication line
- monitoring using the HtMonit programme
Other features:
- delayed programme launch
- programme operation indicator on front panel
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- using the HtMonit programme
Ht205 ohjausyksikkö
- Ohjelmoitava PID ohjausyksikkö, 2 position / 3 position ohjaus teollisiin käyttökohteisiin
- Vakiona LHS, LSP uunit
- Optiona S, L, LH, LMH, LMV, LG, LT, LZ uunit
Basic Parameters:
- 30 programmes, each with 15 steps
- 1 measuring input
- 2 digital inputs
- 7 outputs (regulation, alarm, auxiliary)
- LAN interface
- 2 communication lines
- data logger for measured values, 500 records
- data logger for reports on device activity, 200 records
- data logger for environmental temperatures, 500 records
- monitoring using the HtMonit programme
Other features:
- change to the programme during its operation
- programme operation indicator on front panel
- Master/Slave system, cascading regulation
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- by real-time hour
- via digital input
- via communication linea
HtIndustry ohjausyksikkö
- Teollinen ohjelmoitava PID ohjausyksikkö
- Vakiona LHS, LSP uunit
- Optiona S, L, LH, LMH, LMV, LG, LT, LZ uunit
Basic Parameters:
- 30 programmes, each with 15 steps
- 1 measuring input
- 2 digital inputs
- 2 regulation outputs (heating, cooling)
- 1 alarm output
- 4 configurable auxiliary outputs
- 2 communication lines (computer, Master/Slave)
- data logger, memory for measured values, up to 4,000 records
- monitoring using the HtMonit programme
Other features:
- change to the programme during its operation
- Master/Slave system, cascading regulation
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- by real-time hour
- using the HtMonit programme
Ht40P ohjausyksikkö
- Edullinen single-loop ohjelmoitava PID ohjausyksikkö
- Vakiona LG uunit
Basic Parameters:
- 10 programmes, each with 15 steps
- 1 measuring input
- 0 digital inputs
- 3 outputs (regulation, auxiliary, alarm)
- 1 communication line
- monitoring using the HtMonit programme
- data logger with an option for recording 500 measurements
Other features:
- automatic setting of regulation parameters
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- by real-time hour
- via communication line
Basic Parameters:
- regulation to a constant value
- 1 measuring input
- 0 digital inputs
- 2 outputs (regulation, alarm/signalling)
- 1 communication line
- monitoring using the HtMonit programme
Other features:
- automatic setting of regulation parameters
- ramp function (after the device is turned on, a gradual run-up to temperature; run-up speed is given in °C/h)
- manual mode for setting a required output manually, for instance when the sensor is damaged
- locking of the device’s settings against unqualified interventions
Programme launch:
- from keyboard
- via communication line
Edustamiamme päämiehiä
ABP Induction
Induktioteknologia
Allied Minerals
Tulenkestävät massat
Forns Hobersal
Lämpökäsittelyuunit
Intermetall Produkte
Tulenkestävät valut
Jasper
Teollisuusuunit
Lac
Mesa Electronic
Mittalaitteet
PhoenixTM
Mittalaitteet
Seco Warwick
Uttis
Erikoisuunit
Tarvitsetko apua tuotteiden tai teknisten ratkaisujen kanssa?
Ota yhteyttä, tunnemme lämpökäsittely prosessit, laitteet ja materiaalit!
Myynti ja tekninen tuki
Janne Huhta
Vaihde: 09-615 20 550
Matkapuhelin: 050-305 5972
Sähköposti: janne.huhta(at)beijers.fi
Beijer Oy
Vaihde: 09-615 20 550
Sähköposti: info(at)beijers.fi
